Description

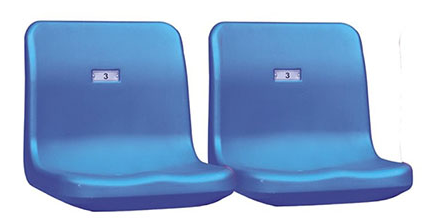

ZK01 High backrest HDPE Arena stadium seating
The ZK01 stadium seating features double-wall, making it more comfortable than single wall stadium chairs. Due to its seat design, appearance, the chair looks beautiful when installed to the stadiums. Besides, the stadium seating is also easy for installation and repair.
1.Stadium Seating Main Introduction
Chair: 5pcs/bag
Bag size：77*52*45cm
Volume/Bag: 0.18m³
Weight/Bag: 11.75kgs
100pcs (Iron plate + screws): 0.05m³ 37KGS
Loading Capacity：
A 20FT container: 770 sets
A 40HQ container: 1870 sets
Riser mount (Chair + steel pipe + aluminum foot + screws )
100pcs(Steel pipe + Aluminum pipe + screws): 0.62m³ 241.2KGS
Loading Capacity：
A 20FT container: 670 sets
A 40HQ container: 1620 sets
MOQ
500pcs per model each color
Production Capacity
30,000 pcs/momth
Material
HDPE(High-density polyethylene)
The seat is made of high-quality brand-new material and is resistant to high temperature, aging, UV rays, impact, high and low temperatures, and oil.

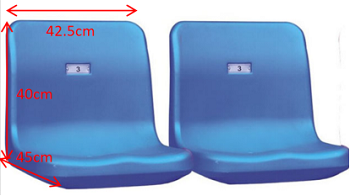

Dimension
Wide×Deep×Hight=425×450×400(mm)
Weight
2.3KGS±100g
Feature
A hole is in the seat surface to release water if any water remains in the seat.

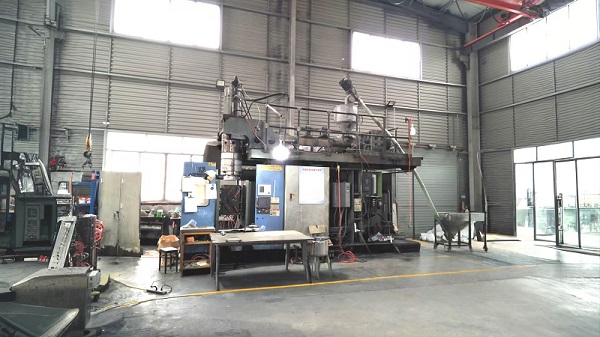

Process
Blow molding, One-step molding, soft surface.
Package (Estimated data)

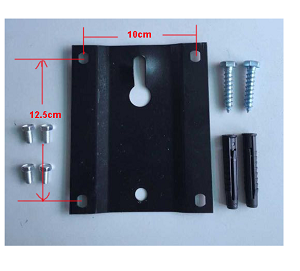

Floor mount (Chair + iron plate + screws )
2. ZK Series Stadium Seating Technical Specification
| Stadium Seating Technical Specification | |||||
| Model | ZK-01 | ZK-02 | ZK-04 | ZK-05 | ZK-06 |
| High Back |
Middle High Back |
Middle High Back |
Low Back | Flat | |
|
Pic |
 |
|
|
 |
 |
| Dimension |
Wide:42.5cm High:40cm Deep:45cm |
Wide: 42cm
High: 32cm
Deep:45cm
|
Wide: 41cm
High:36.5cm
Deep: 45cm
|
Wide: 41cm
High:18cm
Deep:42.5cm
|
Wide: 40cm
High:7cm
Deep:37.5cm
|
| Net Weight | 2.35 KGS | 1.95 KGS | 1.95 KGS | 1.45 KGS | 1.25 KGS |
| Material | HDPE (UV resistance optional) | ||||
| Color |
Red\Blue\Green\Costomized We have standard colours for our products and we are also happy to provide chairs in the required Pantone number colour. |
||||
| Standard | QB/T2601-2013 | ||||
|
Seats and backrest of the chair static load |
2000N×20 times | ||||
|
Back of the chair static load |
800N×20 times | ||||
|
Balance load of seat part |
2000N | ||||
|
Endurance load of seats part |
960N×200 thousand times | ||||
|
Endurance load of back part |
350N×200 thousand times | ||||
|
Anti-impact Ability |
Height 360mm×20 times | ||||
|
Ageing resistance performance |
≥3500h | ||||
|
High temperature resistance |
-60°C to ＋80°C,72h | ||||
|
The seat Life span |
More than 10-15 years | ||||
3. Parts/Accessories

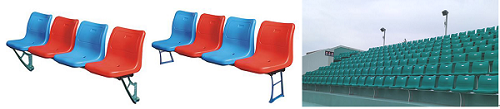

There are 3 installation methods.
|

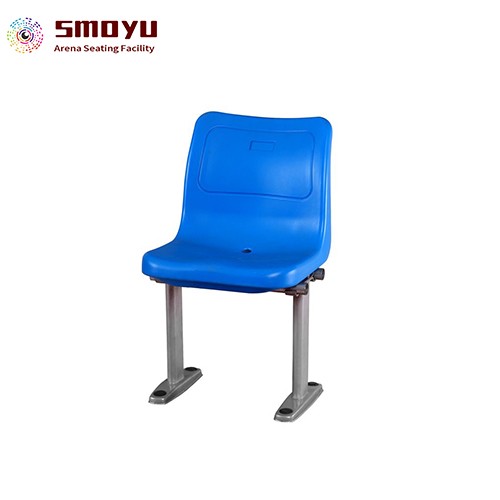

Floor mounted (stadium seating is mounted directly onto the concrete or wooden steps above, with screws at the bottom securing the seat and steps). |
 |
|

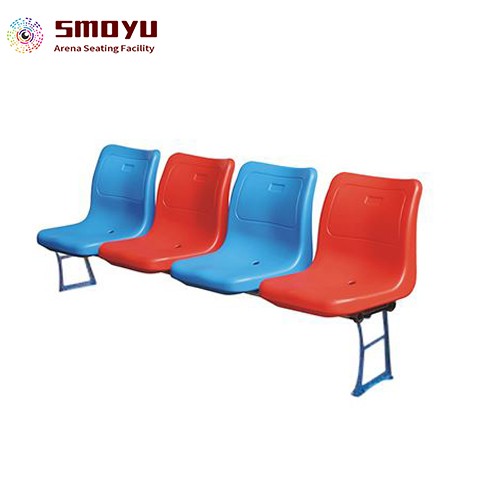

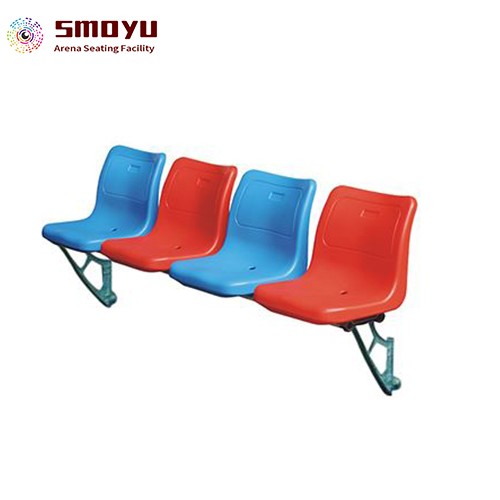

Riser mounted (stadium seating is mounted on aluminium feet which are fixed to the riser ramp of concrete or wooden steps). |
 |

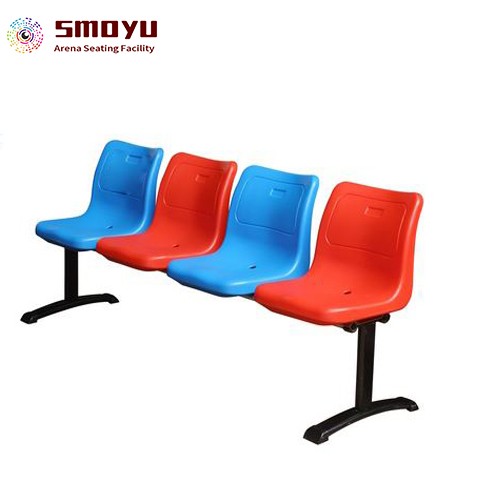

| Bleacher seating (a row of seats mounted on a steel/aluminum/concrete staircase, can also be a telescopic bleacher seating system. |
 |
|
1. Tripods: are all high-quality aluminum alloy brackets with polished and plastic-sprayed surfaces, good quality and beautiful appearance.
2. Pipes: High quality pipes connect 1-20 seats.
3. Steel parts: All have undergone anti-oxidation treatment.
4. Fasteners: Standard screws and washers to attach the hoops to the seat and feet. Use expansion bolts to secure the stand to the floor. 5. Seat Number Aluminum Sheet: Built into the top of the backrest unit, with the row number on both sides of each set. |
|
4. Installation
Use M8x70 telescopic bolts to fix the seat to the floor. The seat spacing is 480mm and the seat height is about 425mm from the foor. Ensure the straightness of seats and rows.
According to Article 5.2 of JGJ57-2000: The allowable deviation of the average distance difference between seats should not be greater than 10mm, and the allowable deviation of the distance difference between rows should not be greater than 40m.
