Description

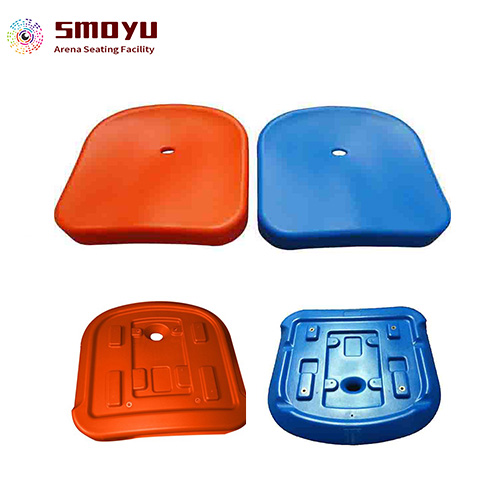

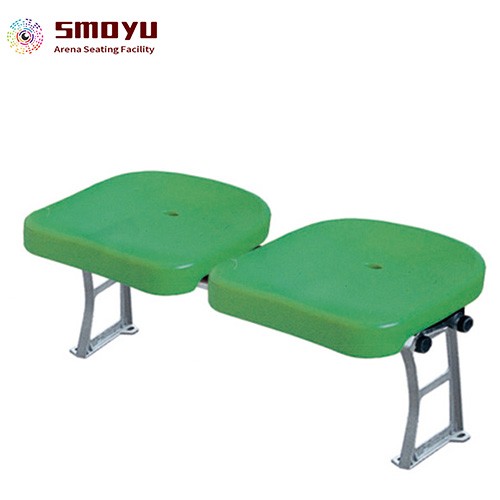

ZK06 Flat board Blow molded HDPE Backless Sporting Seats
Backless shell sporting seats, ideal for concrete grandstands, bleachers, stadium and academy halls, etc. Smoyu guarantees that the chairs use 100% new HDPE material all the time, not contain any recycling material, which is the key that chairs service life is over 10-15 years with high stable quality.
The sporting seats’ ergonomic lumbar support improves audience comfort. Seat is Blow molded from stable high-quality high-density polyethylene.
1. Sporting Seats Main Introduction
Material

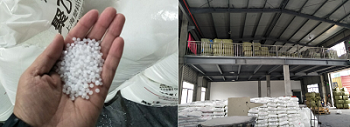

Chair-HDPE(High-density polyethylene) Fully 100% made in Eco materials, not including any recycling material
Steel Pipe-anti-oxidation
Aluminum Leg: Polished and spray-coated surface, high quality and beautiful appearance
The seat is crafted from premium, brand-new materials that are impervious to high temperatures, aging, and impacts, as well as both high and low temperatures, and also oil.
Dimension
Wide×Deep×Height=400×375×70(mm)
1.25KGS±100g
Feature
A hole is in the seat surface—releasing residual liquids in the seat and making the cleaning and drying easy and quick
Double wall: more comfortable than single wall chairs, contributing to higher resistance and enhanced aesthetics
Process
One-step blow molding, soft surface
Package Qty (estimated data)
Floor mount (chair + iron plate + screws)
100pcs (Iron plate + screws): 1.05m³ 162KGS
Loading Capacity:
A 20FT container: 2670 sets
A 40HQ container: 6480 sets
Riser mount (Chair + steel pipe + aluminum foot + screws )
100pcs(Steel pipe + Aluminum pipe + screws): 1.62m³ 366KGS
A 20FT container: 1730 sets
A 40HQ container: 4200 sets
CKD in carton, air bubble film and wooden frame Stadium Chair
300pcs per model each color.
Payment Term
T/T, L/C, Western Union, Paypal
Weight
Loading Capacity:
MOQ
Production Capacity
30,000 pcs/momth
Color
Red, Green, Blue, Yellow, other color can be produced per customer's requirement.
Place of Origin
China
Loading Port
Ningbo, China
The sporting seat ZK06 is perfect for stadiums for seat design, shape and installation. It is very beautiful, safe and long life to be used in stadium, good for installation and repairing them. The seat material is made of HDPE which is High-density polyethylene. One time to be shaped and soft surfaces. HDPE is good material for seats and high resistance against high temperatures, Anti-aging, UV proof, impact resistance, high and low temperature resistance, good anti-oil resistance.
The size of the ZK06 HDPE plastic seat is: Wide×Deep×Hight=400×380×80(mm). We design an hole in the seat to release water in case it has no water kept in the seat.
Main mechanical properties of HDPE:
ZK06 seats is approved with standard QB/T2601-2013, Seats and backrest of the chair static load: 2000N×20times, Back of the chair static load 800N×20times. Balance load of seat part: 2000N. Endurance load of seats part and back part: 960N×200 thousand times and 350N×200 thousand times. Anti-impact Ability: Hight 360mm×20 times, back of the chair height 630mm×20 times. Ageing resistance performance: ≥3500. Outdoor UV proof. High temperature resistance:-60°C to +80°C, 72h. The seat Life span: more than 10 years.
Color of the HDPE: We have standard color for produce; also, we are glad to supply chairs with required Pantone numbers and required color samples for confirmation.
2. Parts/Accessories.

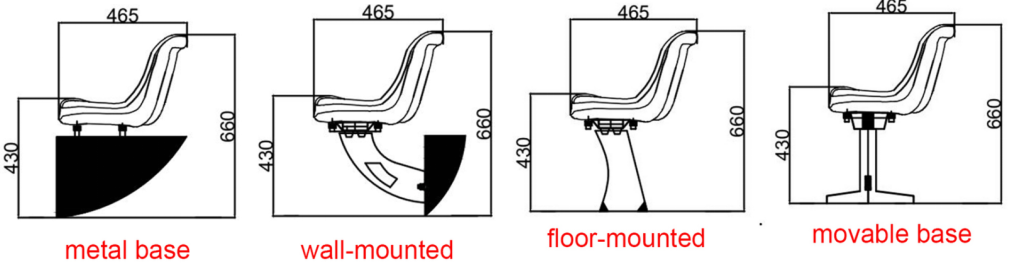

There are 3 types for installation.

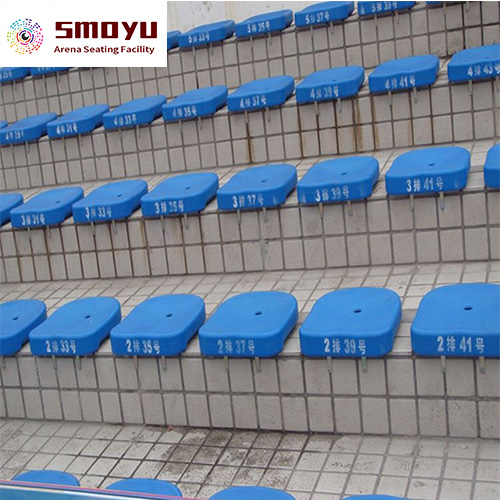

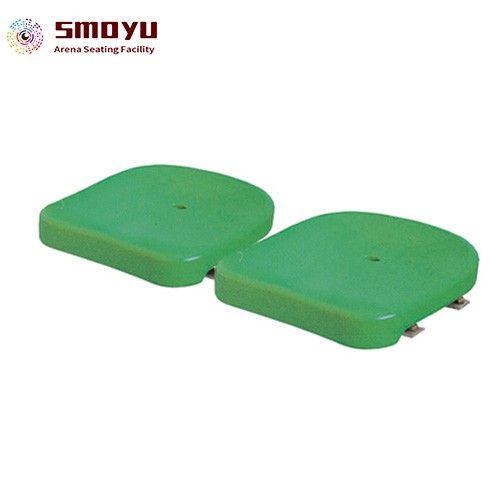

Floor mount (directly installed upon the front end of concrete step or wooden step, with screws in the bottom to fix the seat and the step).

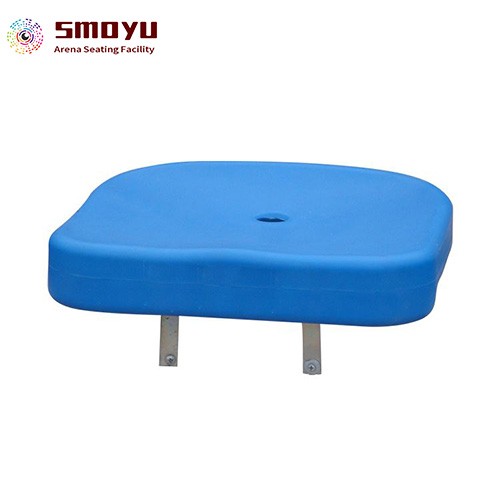

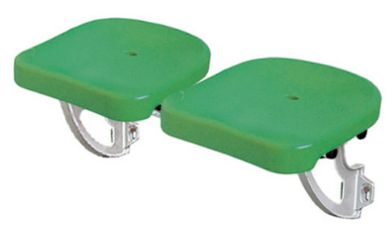

1,Floor install with Steel pipe

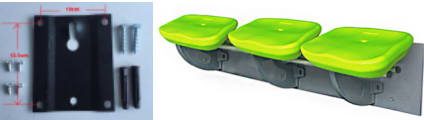

2, Floor mounted with iron dish.

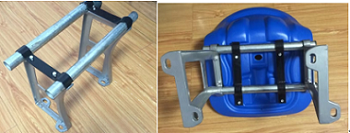

Stand feet and wall feet Riser mount (seats are installed upon the aluminum feet, which fixed upon the riser slope of concrete steps or wooden steps)

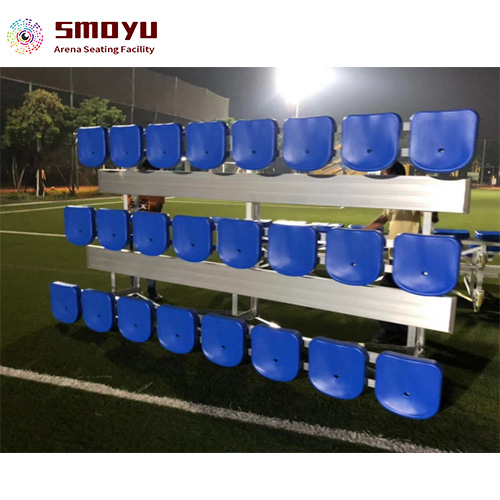

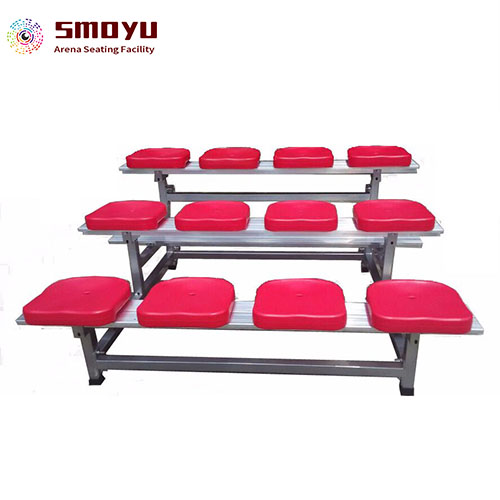

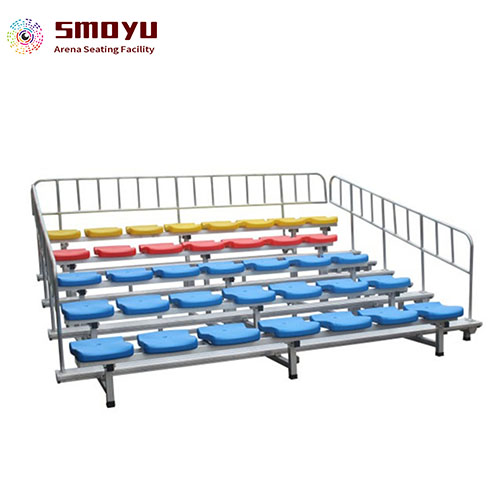

bleachers seats (A row of seats installed upon a steel/aluminum/ concrete stair, can also be telescope bleacher seats system).
All above Feet are High quality Aluminum Alloy Holders, Polished, sprayed surface, good quality and good appearance.

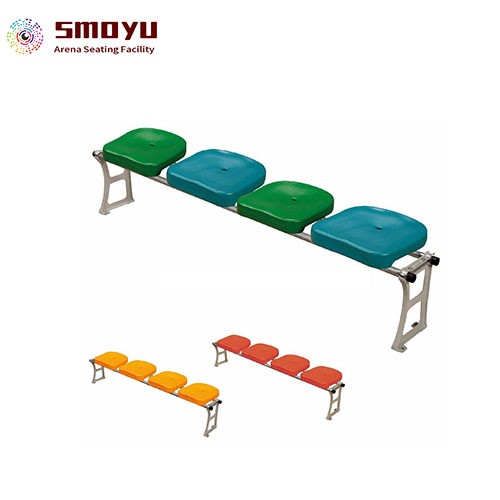

2, Pipe:High quality pipe connects 1-20 seats or more.
3, Steel parts: All are anti-oxidation.
4, Fastening piece:Standard screws and Cushion for connecting hoops and seats and feet. Using expansion bolt to fix feet on the floor.
5, Aluminum sheet for seats numbers: Built in upside of the back parts, rows number is in the both side of per sets.
3, Installation:

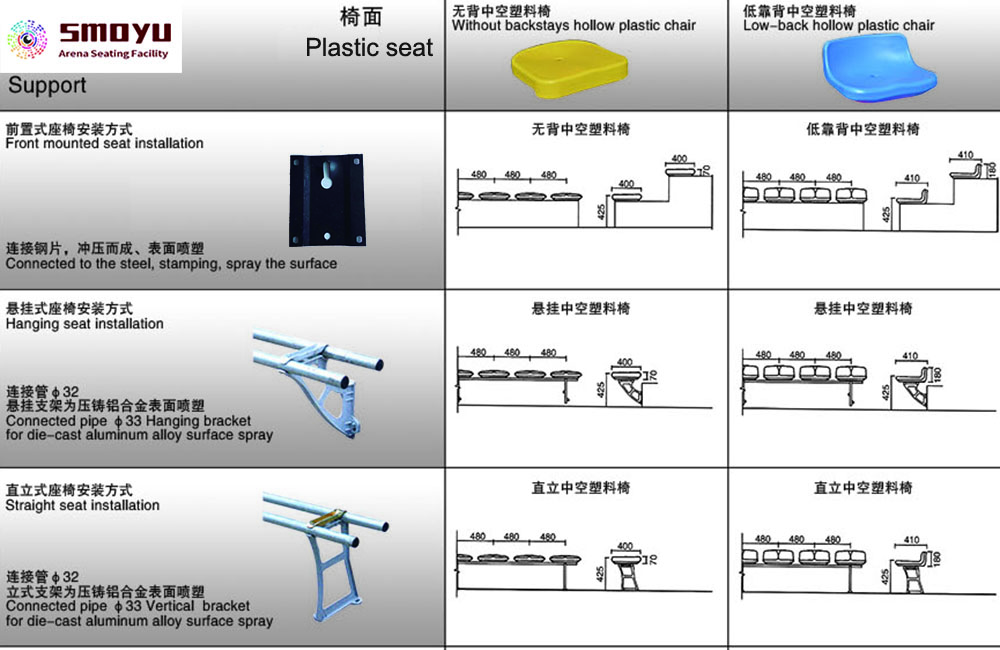

There are different ways of installation the arena seating, but there are 3 main methods:
First is floor mount (directly installed upon the front end of concrete step or wooden step, with screws in the bottom to fix the seat and the step).
Second is Riser mount (seats are installed upon the aluminum feet, which fixed upon the riser slope of concrete steps or wooden steps)
Third is Bleachers seats (A row of seats installed upon a steel/aluminum/ concrete stair, can also be telescope bleacher seats system).

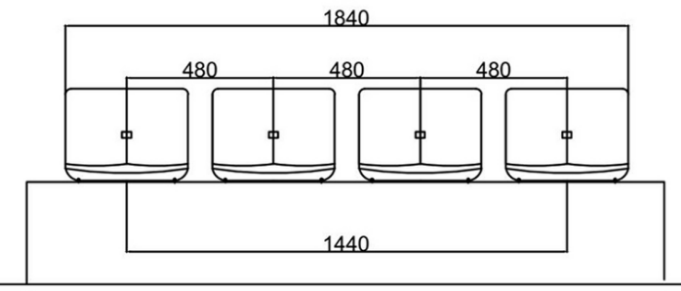

Fixed seats on the floor with M8×70 extension bolts, the distance between seats is 480mm, the seats Hight about 425mm from the floor. To make sure the straight line of seats and rows.
According to Article 5.2 of JGJ57-2000: tolerances of average distance difference between seats should be less than 10mm, tolerances of rows distance difference should be less than 40mm.
4, Picture and color of seats:
MOQ 500pcs is required for per color per type of plastic seats. Regular colors are Red, blue, green, yellow. We can make color as per pantone number as well.
